Winnipeg Clinic

Address:425 St. Mary Avenue (217 Vaughan Street)
Constructed:1942
Other Work:1946, 1959-60
Architects:Frank and William Lount
Firms:Waisman and Ross Architects
Contractors:Frank R. Lount Construction
Tours:Part of the QR Code Tour

More Information

The distinctive curved lines and layered canopies of the Winnipeg Clinic render it a familiar landmark within Winnipeg's downtown. The building is composed of two distinct masses, a squat rectangular lower volume and an adjoining 12-storey tower with jutting winged canopies over canted corner windows. A separate, unattached two-storey power house, on the north-east portion of the site, completes the complex.

The original two-storey clinic was constructed in 1942 on land donated by Dr. Paul H.T. Thorlakson. The clinic was in planning as early as 1938, when Thorlakson was in practise with Dr. Neil John Maclean. The intention was to provide a combination medical clinic and research institute.

Initial construction of the clinic was on land that Dr. Thorlakson donated, and local contractor Frank R. Lount Construction was engaged to design and build the structure. Frank Lount came to Winnipeg from Ontario and evolved into a successful builder and late developer whose impact has been significant, most notably in the St. James neighborhood. Together with his son, William D. Lount, who was trained in architecture in California, Lount developed the Silver Heights Area in the 1950s as well as several commercial properties and apartments in the area. Their use of distinctive rough-hewn pink limestone is a trademark, here used on a wall projection to accent the tower's corner canopies. Lount Senior and Junior designed and constructed both the original clinic and the first major addition in 1946.

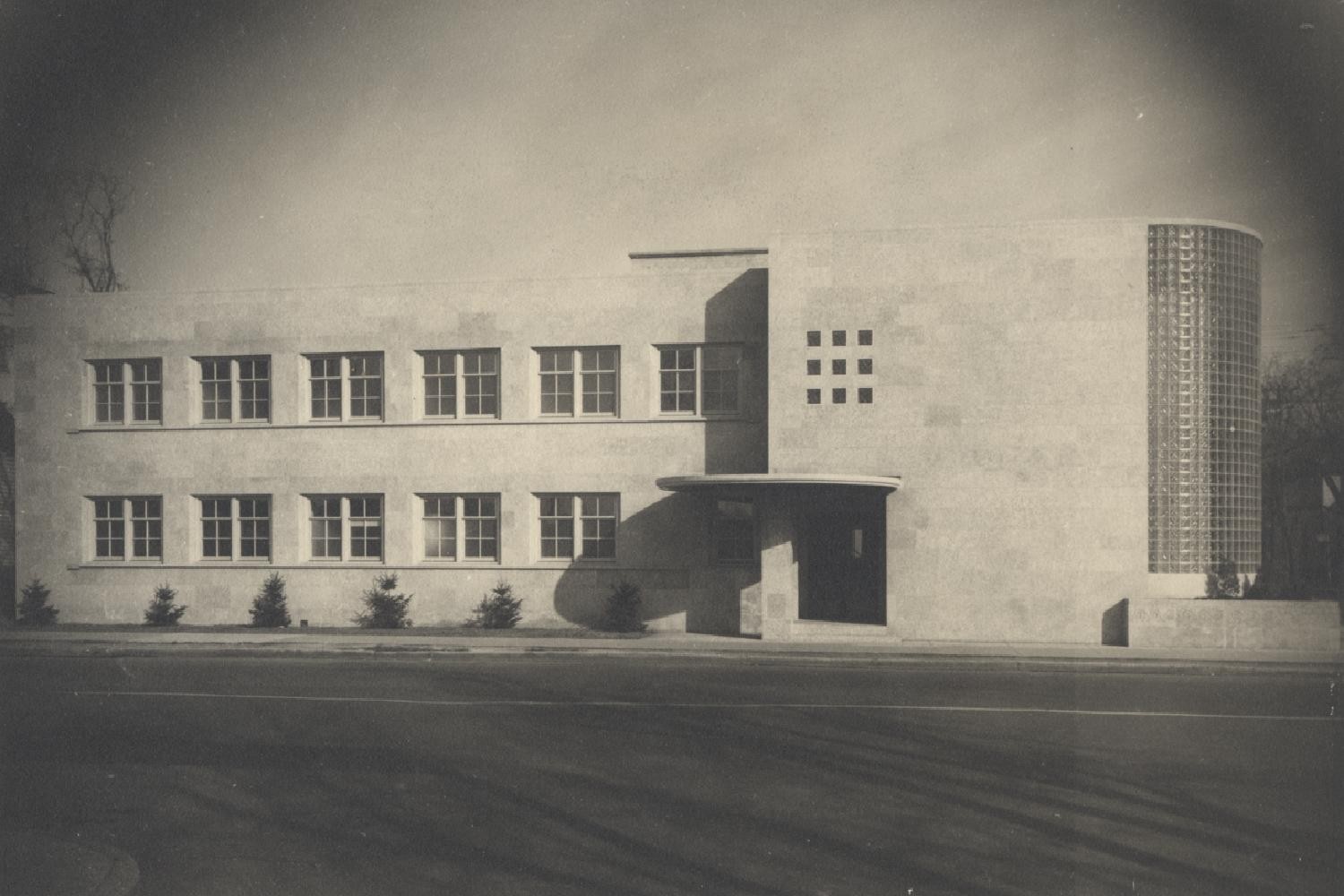

With its sparse lines and plain face, the early Clinic echoed the Art Deco Winnipeg Auditorium across the street. So as not to impact upon essential war-time supplies of steel, the Clinic is a solid masonry structure, two-storeys, with a sash window along Vaughan Street and a ground to roof glass brick corner window. Three additional glass block columns on the south elevation provide light to an interior stair landing. The building is sheathed in limestone, whose colour was matched in the 1946 addition. The later 1956-60 addition's pink limestone is of a slightly lighter shade. This pink-hued limestone had not previously been used or sold by the quarries – it had been stored underwater and was of a grade that could not be cut into the standard 4" thick sheets normally utilized for architectural cladding.

When the war ended a decision was made in favour of a major addition to the Winnipeg Clinic. In 1946 the Lounts were awarded the task of tripling the capacity of the 1942 building. They opted for a more modern look that utilized the St. Mary portion of the site. With dimensions of 77 x 63 feet, the new clinic offices rose five-storeys and were constructed at a cost of roughly $350,000.

The 1946 addition provided the Winnipeg Clinic an even more contemporary look. The addition featured banks of windows on the building's south elevation, shaded by massive canopies that seem to pass through the stone divider. These windows are in the central waiting rooms of each floor. The interior matches the exterior features, a curved information desk was located in the main hall. A new elevator was also added, and its rooftop housing was similarily clad in pink limestone.

Due to the development of more sophisticated machines that require a guaranteed source of power, the Clinic also erected its own powerhouse in 1946. This structure was utilitarian in appearance and contained boilers, a transformer vault, a laundry sterilizer, air conditioning unit, and coal bin as well as a lounge and kitchen for its growing staff. By 1951, there were 42 medical doctors in the clinic which supported nearly 100 ancillary staff.

In 1952, F.R.Lount and Son were recalled to construct an "alteration and addition" to the Clinic. The addition was built at a cost of $3500; it is a single-storey, 22x16 feet, and required only four months to construct.

Another major addition, launched in 1959 and completed in 1961, added six-storeys and a penthouse, bringing the building to its present size. This time, Frank Lount and Sons were the contractor for a design developed by Winnipeg architects Waisman and Ross. Changes in medical engineering which occured from 1946 to 1959 required updated mechanical and electrical service. This final addition also employed concrete, steel and masonry, with precast floors. The cost was $395,000.

Design Characteristics

  • Employing masonry construction, the original 1942 portion of the clinic is the two-storey Art Moderne rectangle at the corner of Vaughan Street
  • A five-storey steel frame and limestone medical office tower was added to the rear of this in 1946
  • The modernist facade of the new section was oriented along St. Mary Avenue
  • An additional six storeys completed the present building in 1959
  • Pronounced canopies project from each floor to shade the horizontal bands of windows and extend further out at the corner in stacked echoes of the curved glass block windows of the original 1942 structure
  • The use of the distinctive rough-cut pink limestone is the trademark of the architect Frank Lount and his architect son William Lount, used here to accent the canopies of the tower
  • Lount was also the first in Canada to employ Lift Slab construction in a building project The Lift Slab technique was pioneered in Columbia, South America and the United States and functions as a dual structural system consisting of post-tensioned concrete slabs that have been cast on site, supported on steel columns
  • Possibly Winnipeg’s most futuristic public building, the Frank Lount-designed Winnipeg Clinic on the corner of St. Mary Ave. and Vaughan St. is a familiar landmark. Its visionary builder, Dr. Paul Thorlakson, conceived this building as a combination medical clinic and research facility, a breakthrough concept that led to enduring success for the clinic
